Model : CD-MTO-324T
Specifications Imperial Metric
Cone Drive Part Number CD-MTO-324T
Reference Kaydon Part Number MTO-324T
Reference Torriani Part Number N/A
Type Standard
Teeth None

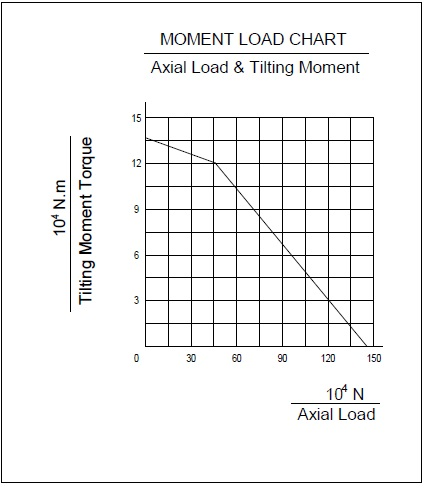

Max Moment Rating 102,400 ft-lbs 138,847 N-m
Approx. Weight 105 lbs 47.6 kg
Outer Diameter 20.486 in 520 mm
Inner Diameter 12.75 in 324 mm
Outer Bolt Circle Diameter 18.875 in 479 mm
Qty of Holes in Outer Ring 20
Outer Hole Size 5/8 - 11 UNC-2B in 5/8 - 11 UNC-2B in
Inner Bolt Circle Diameter 14.375 in 365 mm
Qty of Holes in Inner Ring 20
Inner Hole Size 5/8 - 11 UNC-2B in 5/8 - 11 UNC-2B in

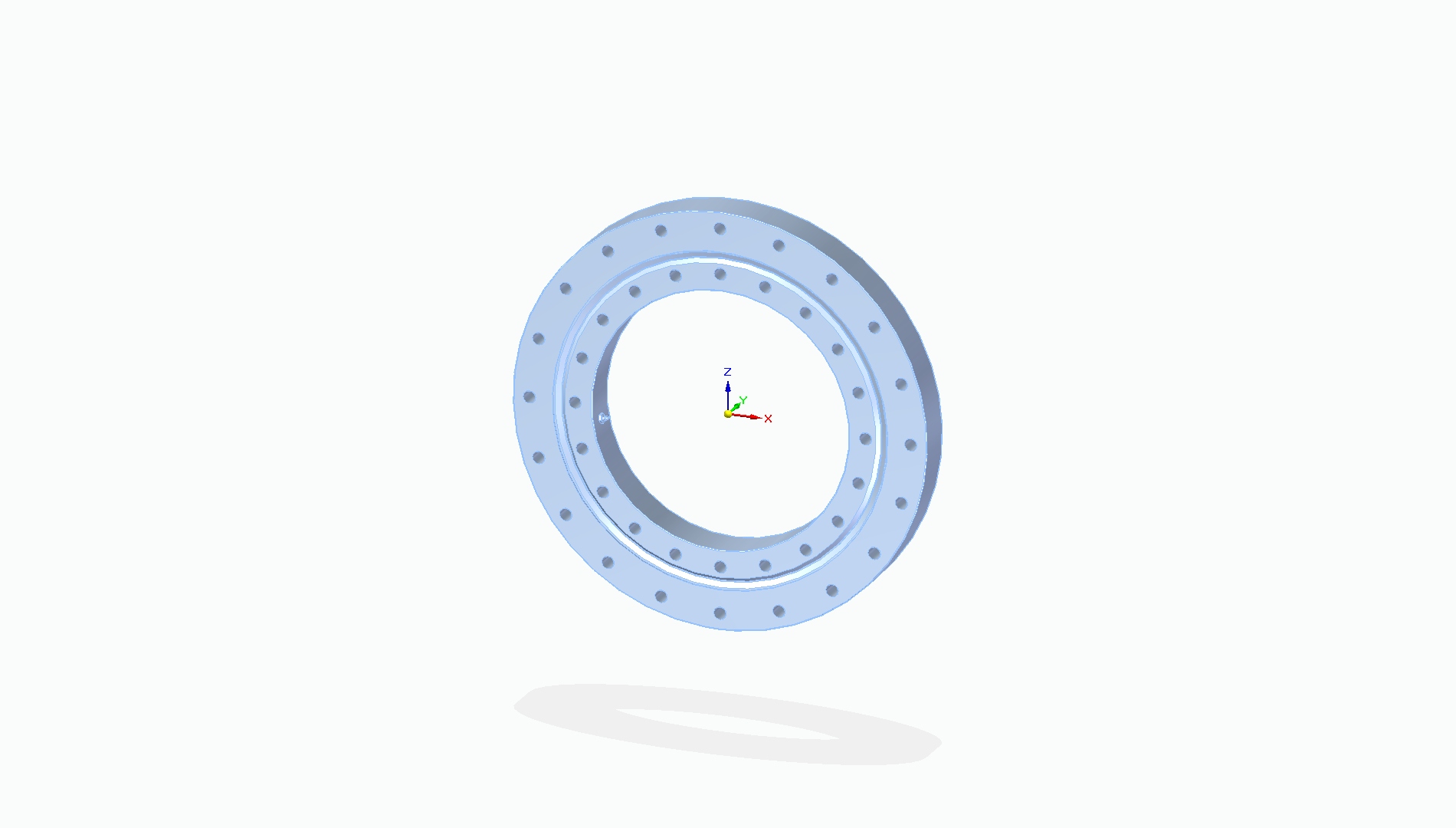

Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
