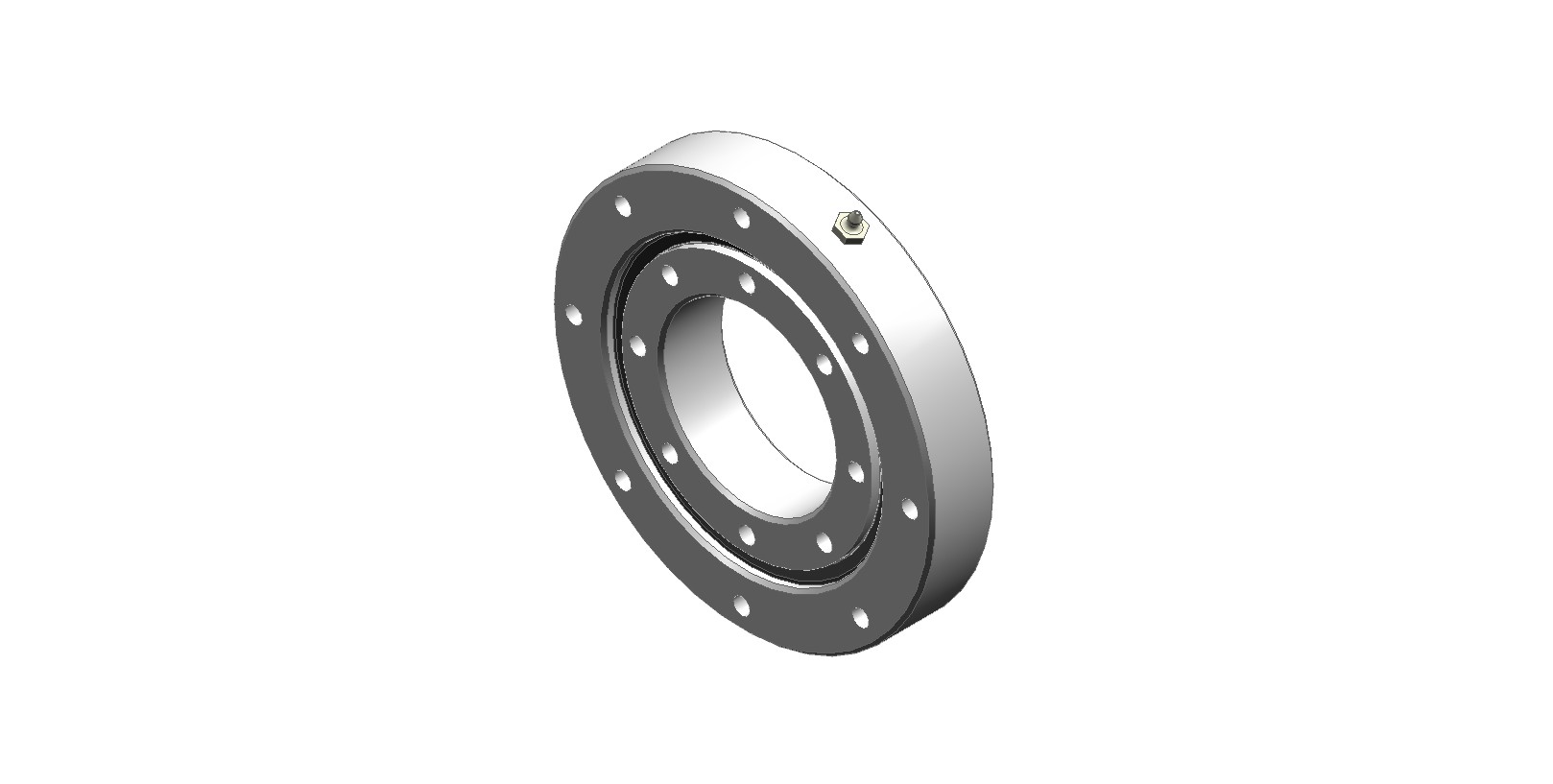

Model : CD-MTO-050T
Specifications Imperial Metric
Cone Drive Part Number CD-MTO-050T
Reference Kaydon Part Number MTO-050T
Reference Torriani Part Number N/A
Type Standard
Teeth None

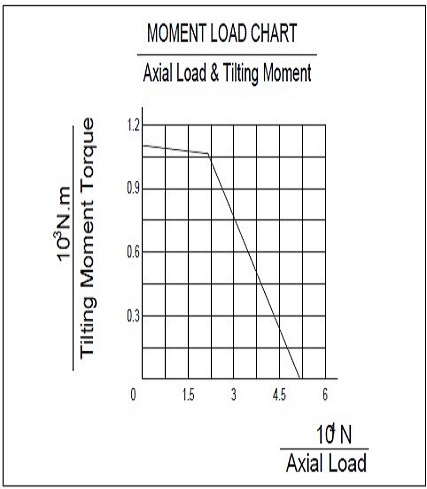

Max Moment Rating 830 ft-lbs 1,125 N-m
Approx. Weight 2 lbs 0.9 kg
Outer Diameter 4.331 in 110.0 mm
Inner Diameter 1.968 in 50 mm
Outer Bolt Circle Diameter 3.818 in 97.0 mm
Qty of Holes in Outer Ring 8
Outer Hole Size M6 in M6 in
Inner Bolt Circle Diameter 2.480 in 63.0 mm
Qty of Holes in Inner Ring 8
Inner Hole Size M6 in M6 in


Note: If you are unable to view an active 3D PDF image, please use the button below to download the 3D PDF file and view with Adobe Reader
