NEMA DRIVEN POWER
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|

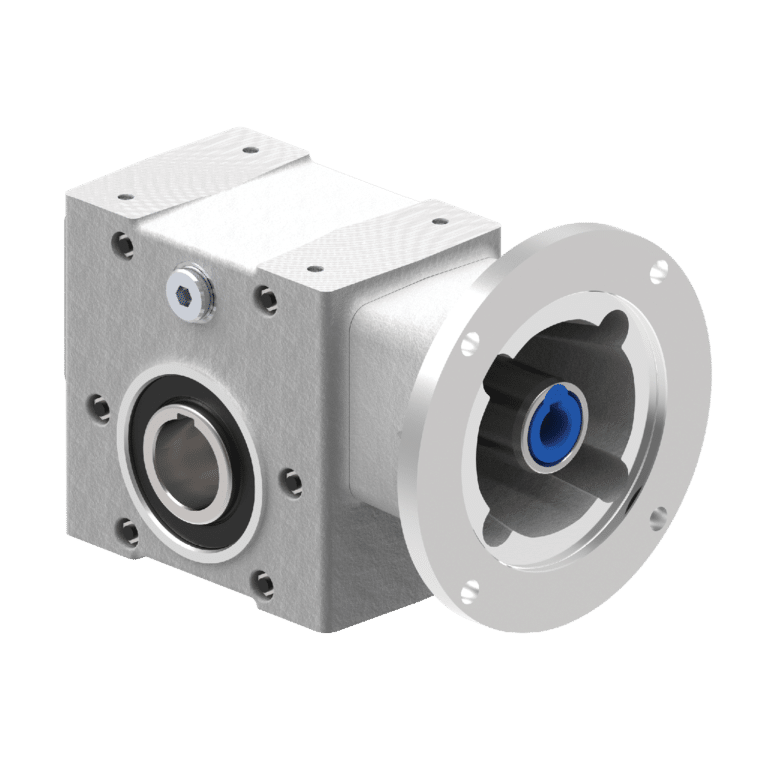

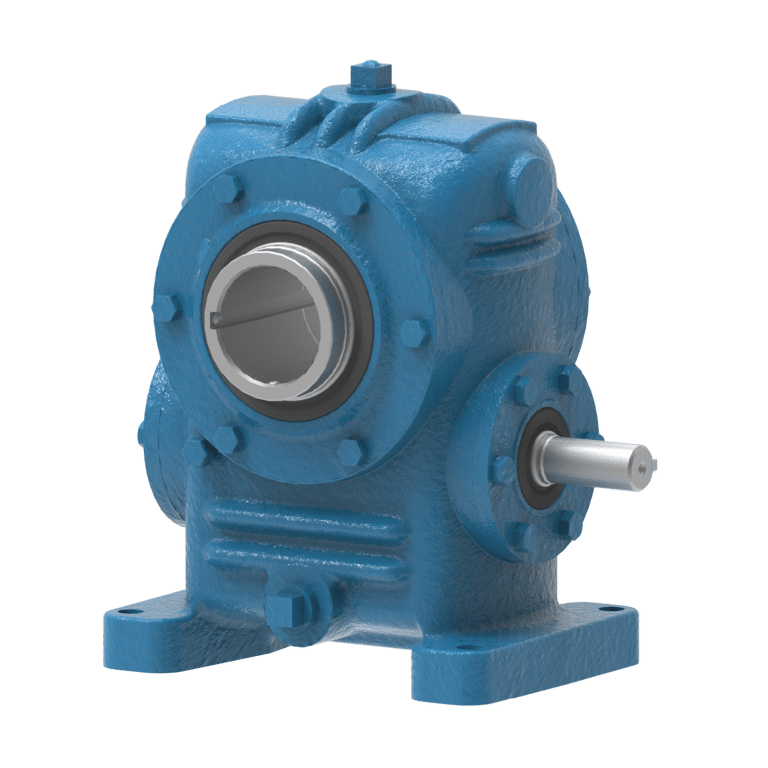

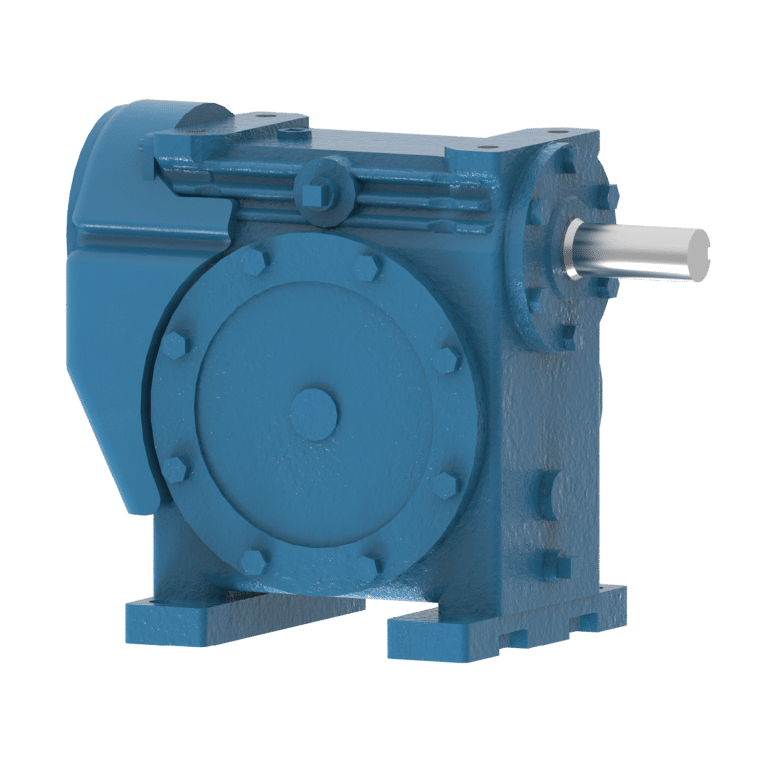

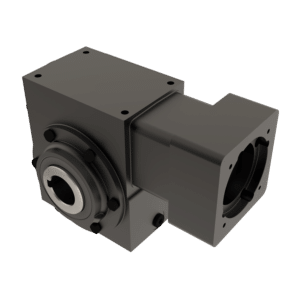

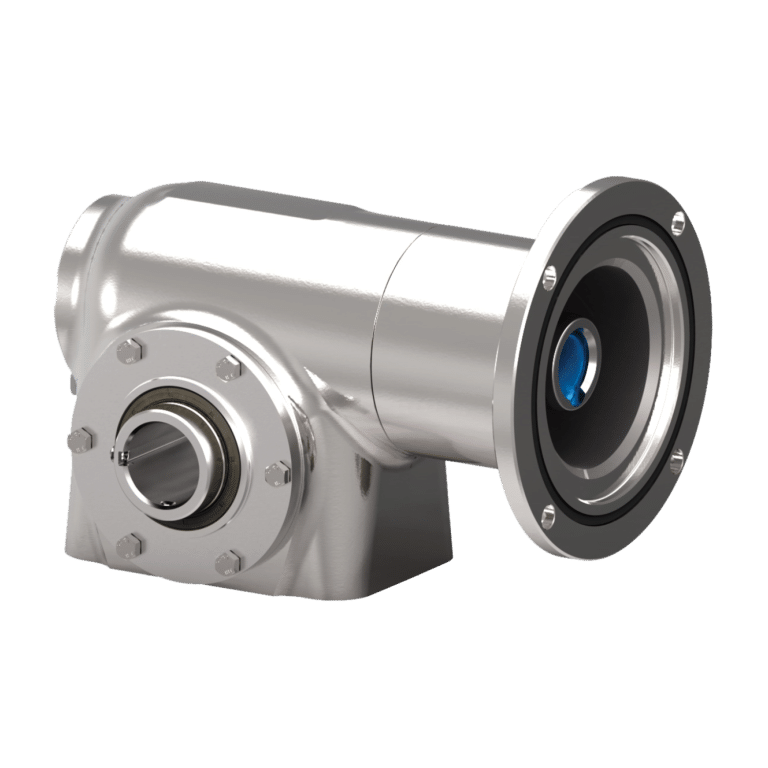

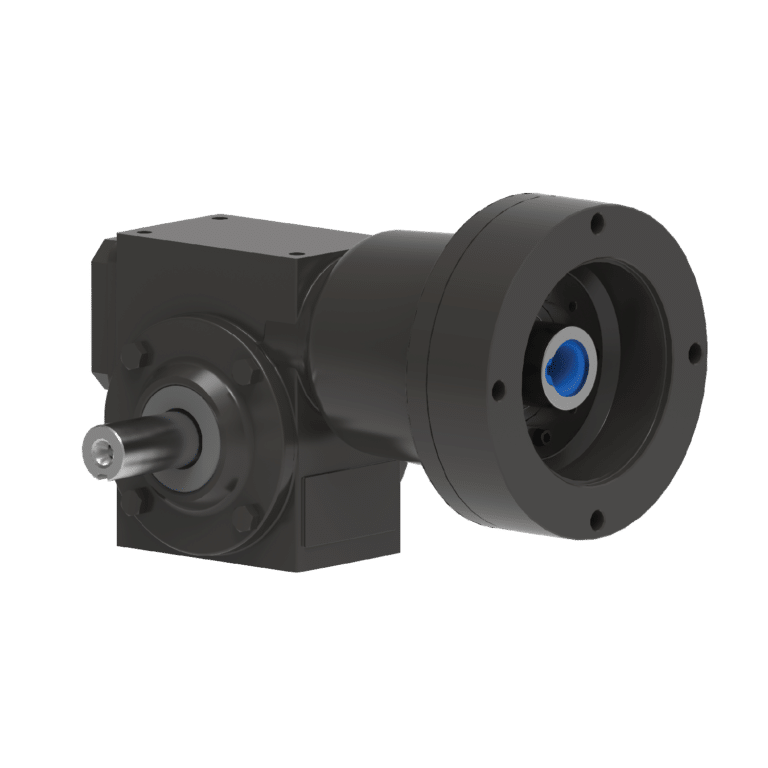

| Product | Series HP | Series HP-A | Series B | Series RG | Series F |
| Size | 1.50-28 in | 100-200 mm | 1.33-3.54 in | 1.5-3.5 in | 39-76 mm |
| Construction | Cast Iron | Cast Iron | Aluminum | Cast Iron | 316 Stainless Steel |
| Ratio | 5:1-343,000:1 | 5:1-70:1 | 5:1-3,600:1 | 5:1-600:1 | 5:1-600:1 |
|
Output Torque (ConstantSpeed) |
<= 2,900,000 lb-in | <= 88,100 lb-in | <= 6,370 lb-in | <= 10,800 lb-in | <= 5,950 lb-in |
| Shock Load Capacity | High | High | Moderate | High | Moderate |
| IP Rating | N/A | N/A | IP 55 | IP 65 | IP 69k |
| Warranty | 5 Year | 5 Year | 2 Year | 5 Year | 5 Year |
SERVO DRIVEN POWER
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|

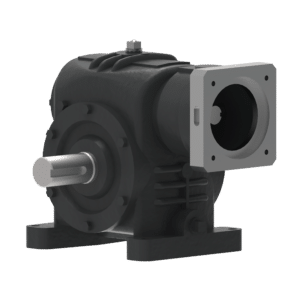

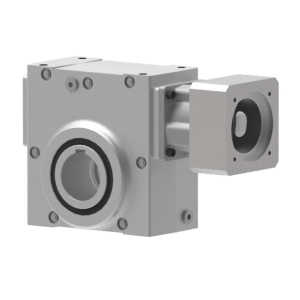

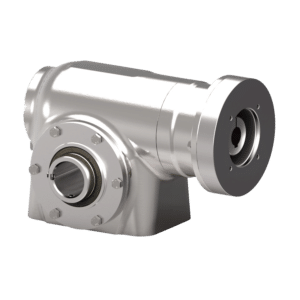

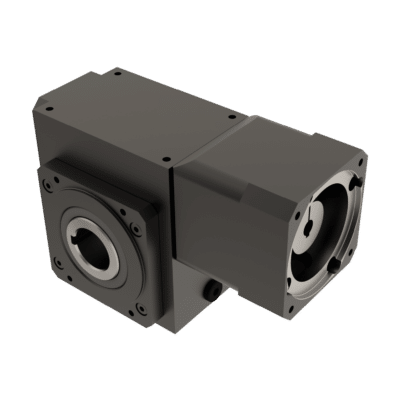

| Product | Series W | Series HP | Series S | Series RG | Series FS |
| Size | 38-89 mm | 3.0-8.0 in | 1.33-3.54 in | 1.5-3.5 in | 39-76 mm |
| Construction | Aluminum | Cast Iron | Aluminum | Cast Iron | 316 Stainless Steel |
| Nominal Backlash Range | 0-24 arcmin | 2-35 arcmin | 12-41 arcmin | 4-27 arcmin | 4-27 arcmin |
| Ratio | 5:1-60:1 | 5:1-70:1 | 5:1-60:1 | 5:1-60:1 | 5:1-60:1 |
|
Output Torque (ConstantSpeed) |
<= 10,800 lb-in | <= 97,100 lb-in | <= 6,370 lb-in | <= 10,800 lb-in | <= 5,950 lb-in |
|
Output Torque (Acceleration) |
<= 11,700 lb-in | <= 121,000 lb-in | <= 7,540 lb-in | <= 11,700 lb-in | <= 6,380 lb-in |
| IP Rating | IP 65 | N/A | IP 55 | IP 65 | IP 69k |
| Warranty | 5 Year | 5 Year | 2 Year | 5 Year | 5 Year |
NEMA DRIVEN: RIGHT ANGLE WORM GEARBOX SOLUTIONS
CONE DRIVE OFFERS INTERCHANGE SOLUTIONS FOR WORM, SLEW, AND HARMONIC PRODUCTS GET STARTED
NEED ASSISTANCE?
Toll Free: 1-888-994-2663
International Tel: +1-231-946-8410
Customizations and IEC motor adaptations available.
Contact ae@conedrive.com for additional
information regarding your specific application needs.
